Thinkware F70 Pro 1-Channel Full HD WiFi Dash Cam

Compact Full HD front dash cam with app control

The Thinkware F70 Pro records the road ahead at 1080p and 30FPS in a compact, screen-free body that is easy to position behind the mirror. Use the Thinkware Dash Cam Link app over the camera's local 2.4GHz Wi-Fi to aim the camera, review recordings and adjust settings while you are near the vehicle; Bluetooth assists pairing.

This package includes a front camera only. There is no rear or cabin camera and no rear-camera input. The included 12V cigarette-lighter cable covers normal driving use; parking modes need a compatible Thinkware hardwiring kit or OBD power cable, sold separately. A 32GB microSD card is included. For a front-and-rear system, compare the Thinkware Q200 2-channel.

Key features

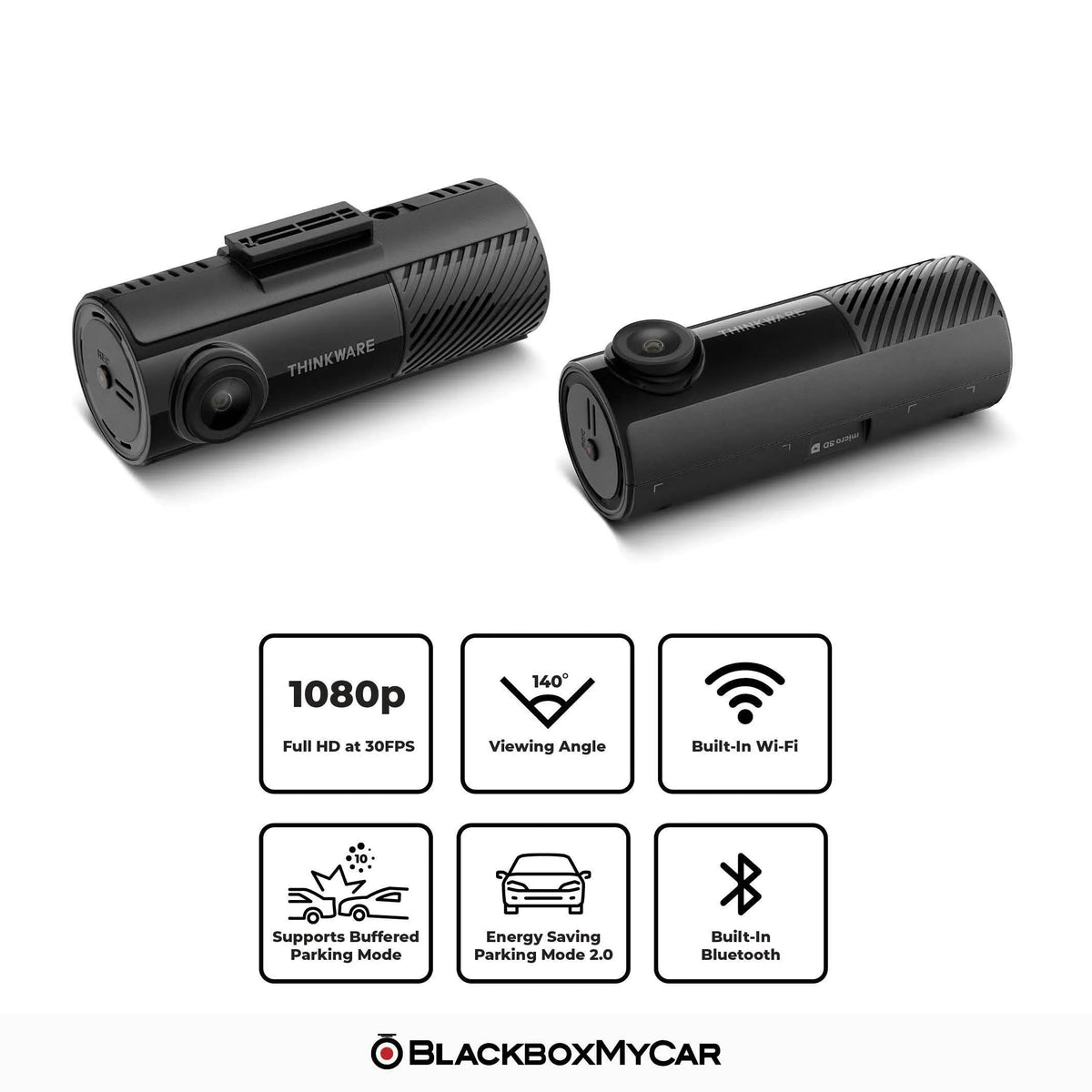

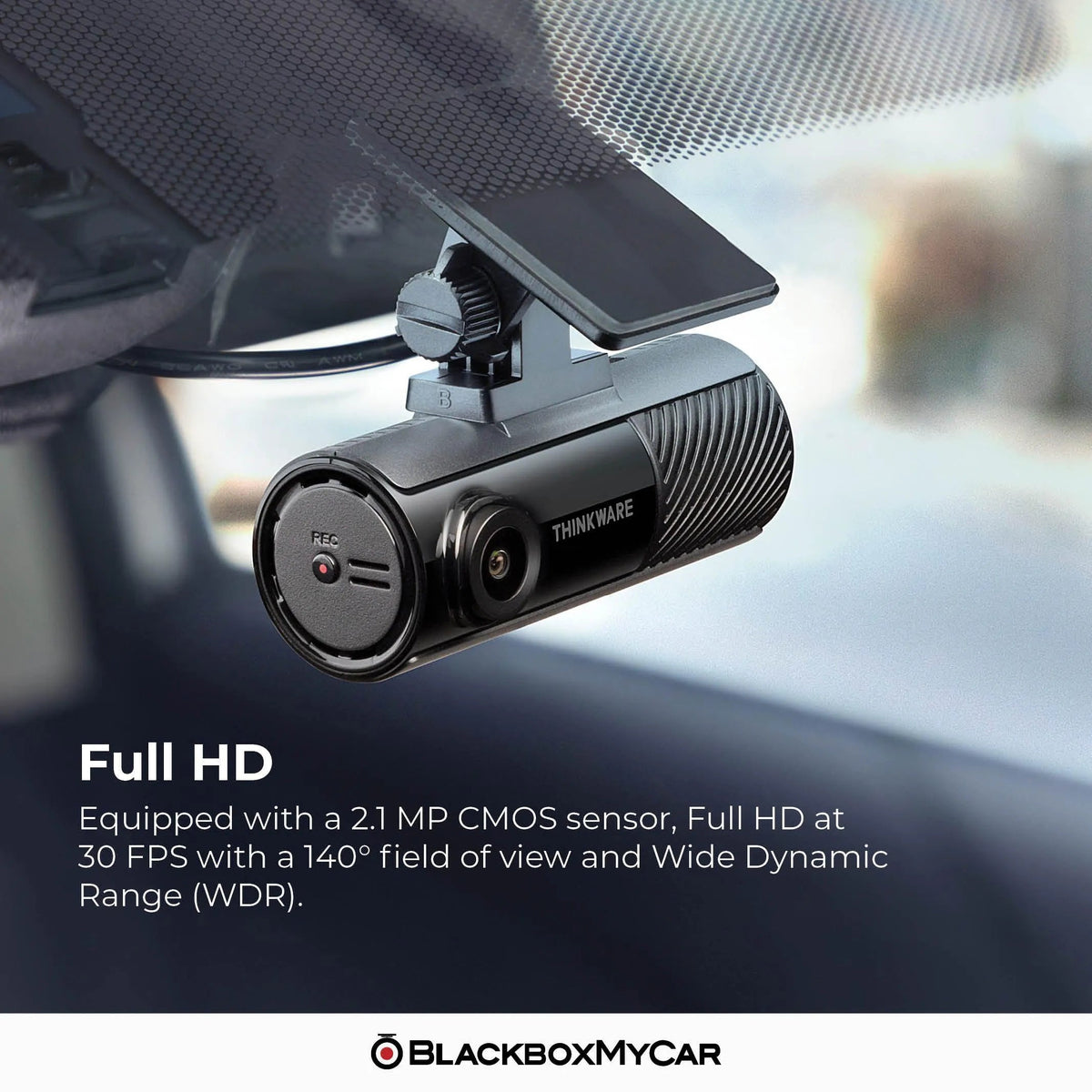

• Full HD front recording: 1920 × 1080 video at 30FPS from a 2.1MP CMOS sensor with a 140° diagonal field of view.

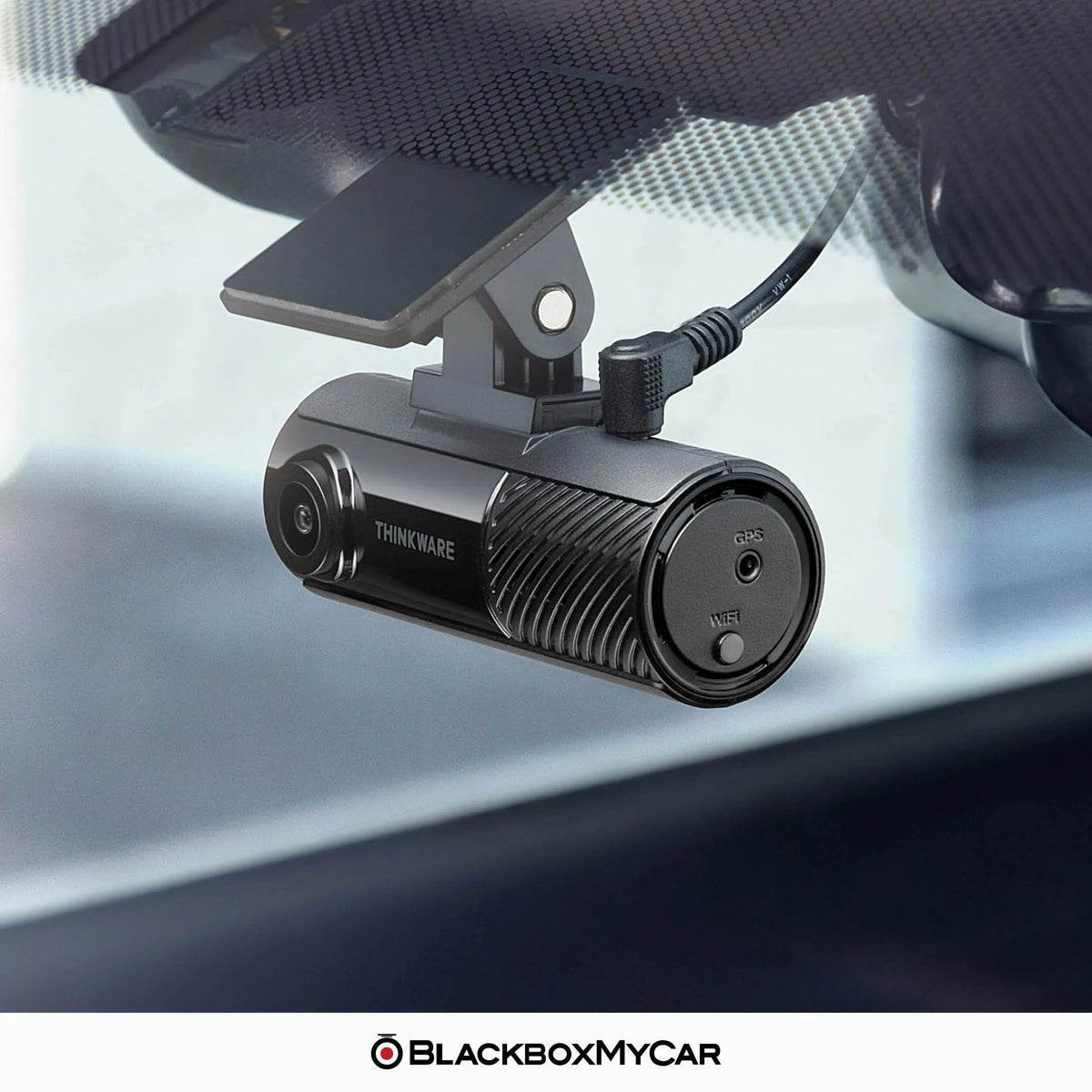

• Compact, screen-free body: measures 82 × 33.8 × 34.6mm and weighs 42.4g without the mount, keeping the driver's view clear.
• Parking recording options: with suitable power, choose Motion Detection, Time Lapse or Energy Saving; see the notes below on what each mode captures.
• Super Night Vision (parking mode): brightens low-light parking footage.

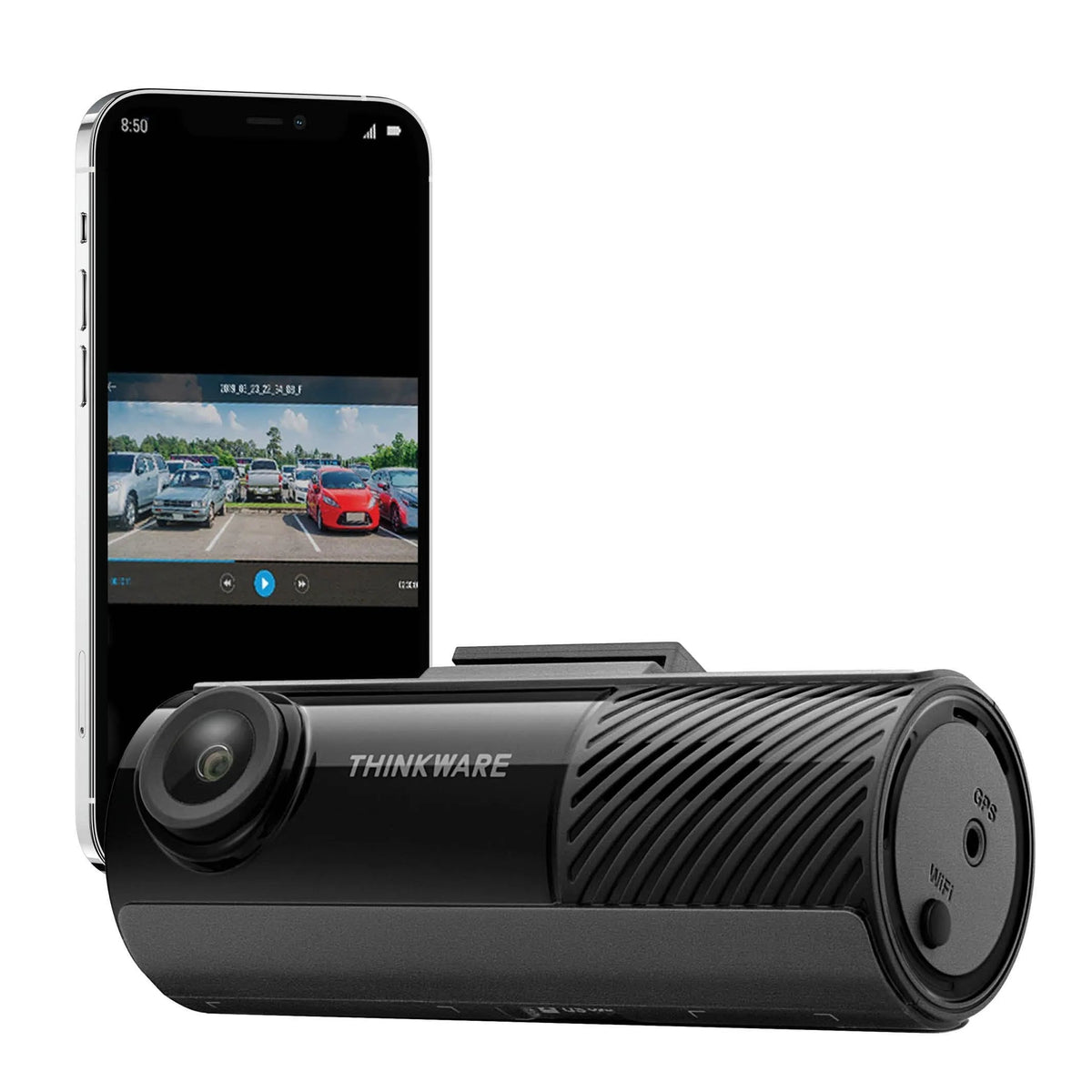

• Local Wi-Fi and Bluetooth: the Dash Cam Link app on a compatible iPhone or Android phone handles nearby live view, file access and downloads; Bluetooth assists pairing. Recording continues without a phone connected.
• Optional GPS: the external Thinkware GPS antenna, sold separately, adds speed and location information to recordings and enables supported speed-camera and red-light-camera alerts. GPS is not built into the F70 Pro.

Understand the parking modes

Motion Detection saves 20-second clips with 10 seconds on each side of a detected motion or impact, so it keeps a pre-event buffer. Time Lapse records at 2FPS. Energy Saving waits for an impact and then records a 20-second clip; it does not preserve footage from before the impact. Choose the mode for the evidence you need rather than assuming every parking mode is buffered.

Super Night Vision brightens parking footage. Smart Parking can switch to impact-only recording in heat, and thermal protection may shut the camera down. The camera's specified operating range is −10°C to 60°C (14°F to 140°F); it is not guaranteed to keep recording in all heat conditions. Configure battery protection and the off timer for your vehicle; available power and conditions determine runtime.

Storage and important recordings

The F70 Pro supports 16, 32, 64 and 128GB microSD cards, and the listed package includes a 32GB card with adapter. Continuous recording saves driving clips to the memory card. An impact triggers a separate 20-second event file with 10 seconds before and after detection. Briefly pressing REC saves a one-minute manual clip: 10 seconds before the press and 50 seconds after it.

Use a supported card, back up important recordings and turn the camera off before removing it. Export important files promptly so they remain available, and copy recordings elsewhere before formatting or changing recording settings.

Phone access and alerts

The camera's Wi-Fi is for a nearby phone connection, with no cellular service or remote Cloud viewing; the GPS accessory does not turn the camera into a live vehicle tracker. Configure settings while parked and check that recording resumes afterward, since it pauses during configuration.

With the optional GPS antenna, keep the regional safety-camera database current using Thinkware's downloads. Alert coverage depends on the database and GPS reception; it does not identify every camera or replace following road signs.

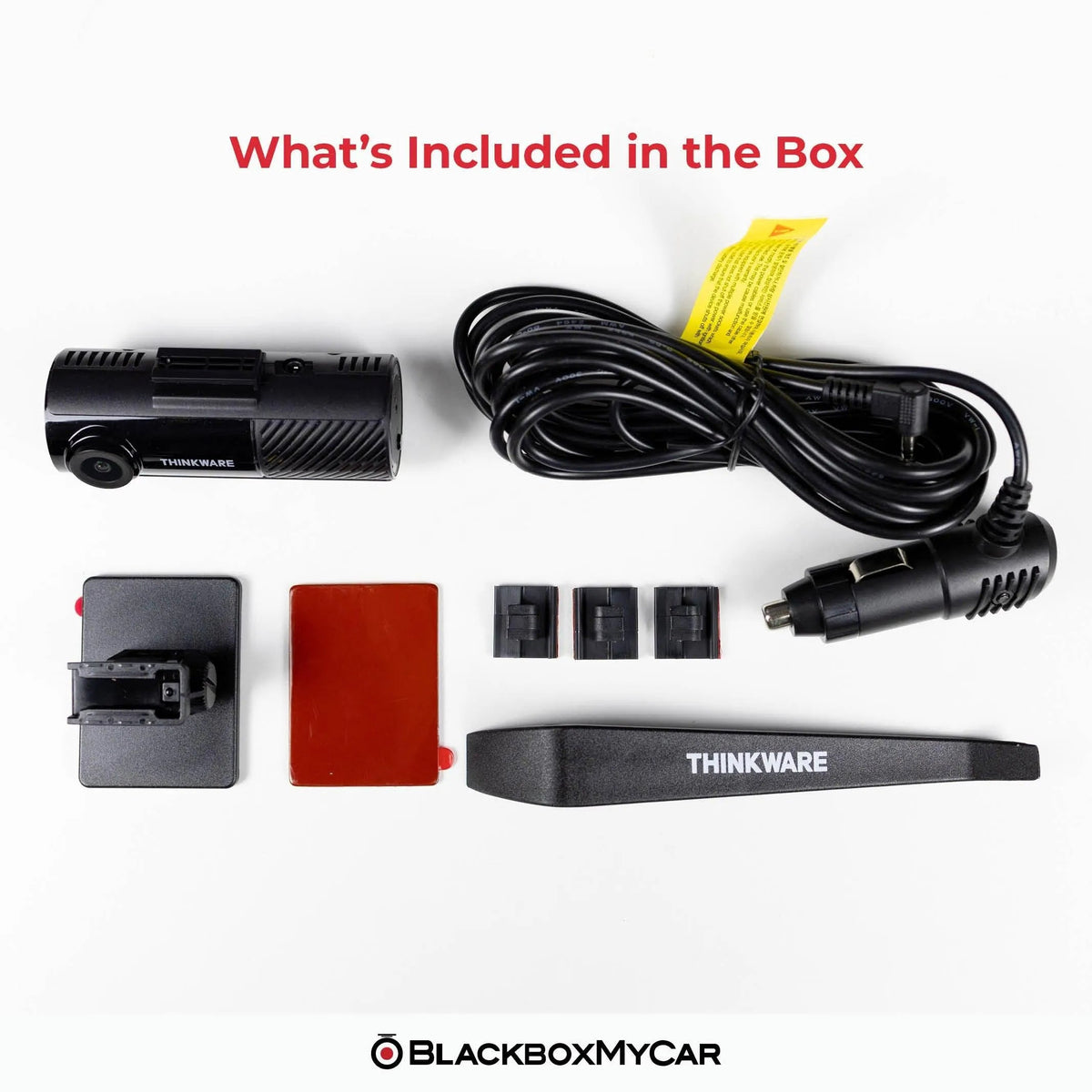

What's included

• Thinkware F70 Pro front camera
• Windshield mount
• 12V cigarette-lighter power cable, 4m / approximately 13ft
• 32GB microSD card with adapter
• Cable holders
• Trim tool

Specifications

• Camera configuration: front only; no rear-camera input
• Front resolution: 1920 × 1080 at 30FPS
• Front image sensor: 2.1MP CMOS, 1/2.7-inch type
• Front field of view: 140° diagonal
• Recording modes: continuous, incident, manual and parking recording
• Display: no built-in screen
• Connectivity: 2.4GHz Wi-Fi (802.11 b/g/n) / Bluetooth Low Energy 5.0
• GPS: optional external antenna, sold separately
• Parking modes: Motion Detection, Time Lapse and Energy Saving; suitable power required
• Storage support: 16 / 32 / 64 / 128GB microSD; 32GB card with adapter included
• Power: 12V / 24V DC with compatible power cable; supercapacitor, not a battery for standalone recording
• Operating temperature: −10°C to 60°C (14°F to 140°F)
• Storage temperature: −20°C to 70°C (−4°F to 158°F)
• Dimensions: 82 × 33.8 × 34.6mm, excluding mount
• Weight: 42.4g, excluding mount
• Video format: H.264 / MP4
• Audio: built-in microphone and speaker; audio recording can be disabled
• App: Thinkware Dash Cam Link
• Warranty: 1-year manufacturer warranty

Setup and firmware notes

Set up the camera through the Dash Cam Link app while parked. Recording pauses during configuration, so check that it resumes afterward. Check the current app-store requirements for your phone.

Use manuals and firmware for the exact F70 Pro model from Thinkware's official downloads and follow the manufacturer's update instructions. Hardwiring cable, OBD power cable, external GPS antenna and CPL filter are optional and sold separately.
