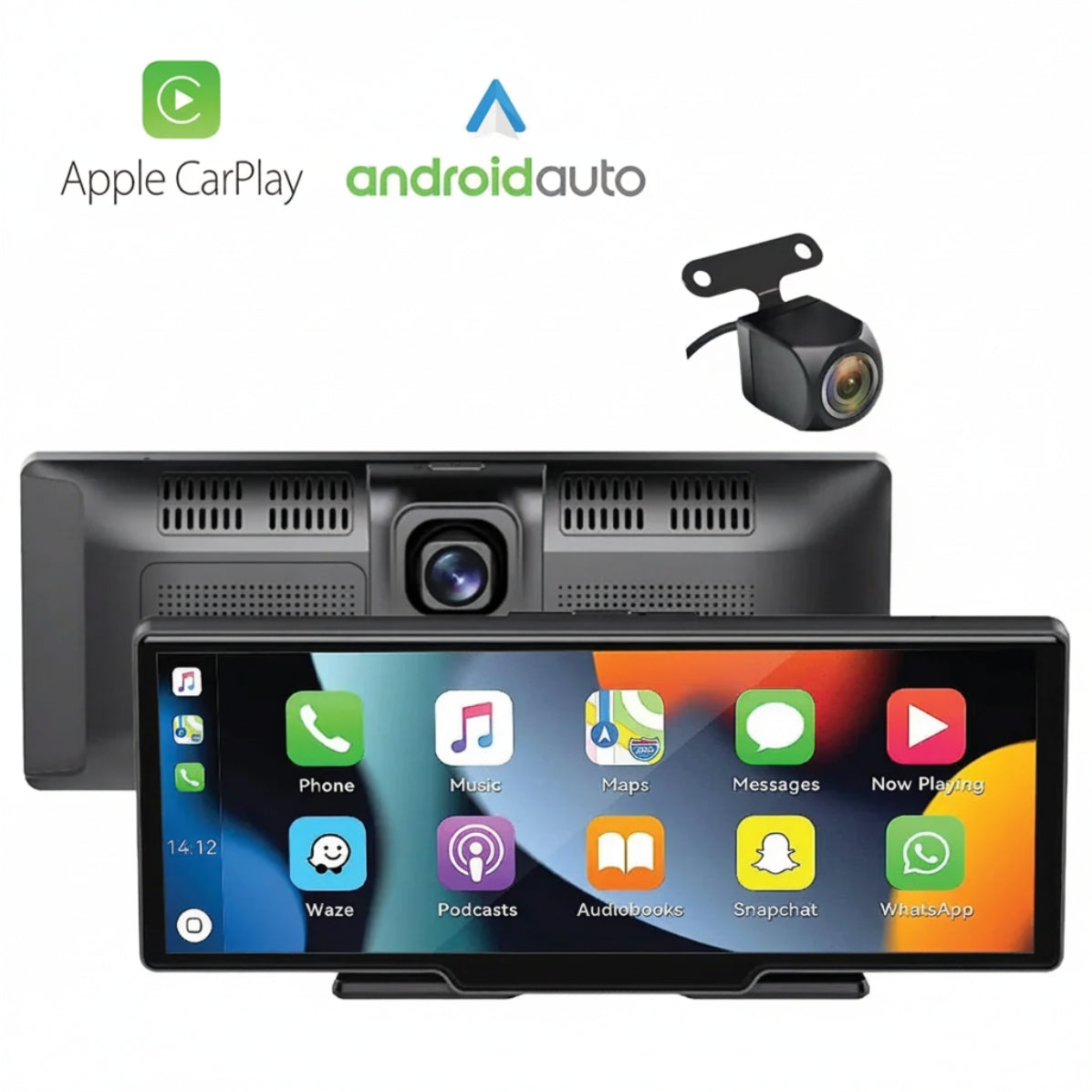

BlackboxMyCar S-Drive 10" Wireless CarPlay & Android Auto Display with Dash Cam

Wireless CarPlay and Android Auto, plus front and rear cameras, without replacing your stereo.

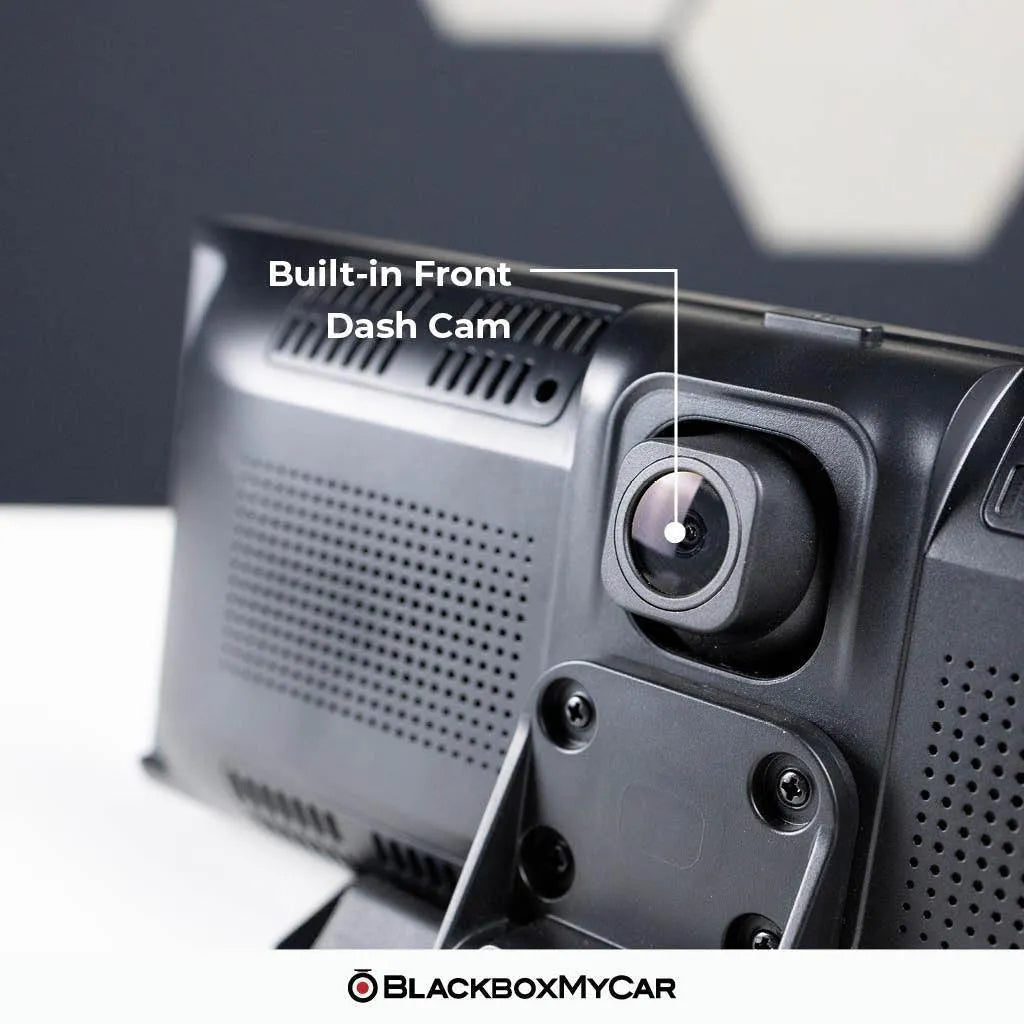

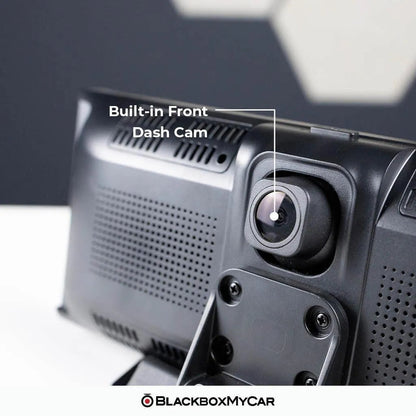

The BlackboxMyCar S-Drive adds a 10-inch touch display with wireless Apple CarPlay and Android Auto to your dashboard. Navigation, music and calls come from your compatible phone, and the display plugs into your 12V socket. A built-in front dash cam and an included rear camera record the road and give you a reversing view.

This is an add-on display. It does not replace your factory stereo, and it has no parking mode. The rear camera, cables, AUX cable, a 64GB microSD card and a 1-year manufacturer warranty are included. A compatible phone, mobile data and any app subscriptions are separate. Automatic reverse view needs the rear camera's trigger wired to the reversing-light circuit.

Key features

• Wireless CarPlay and Android Auto: pair a compatible iPhone or Android phone over Bluetooth and Wi-Fi to use supported apps on the dashboard.

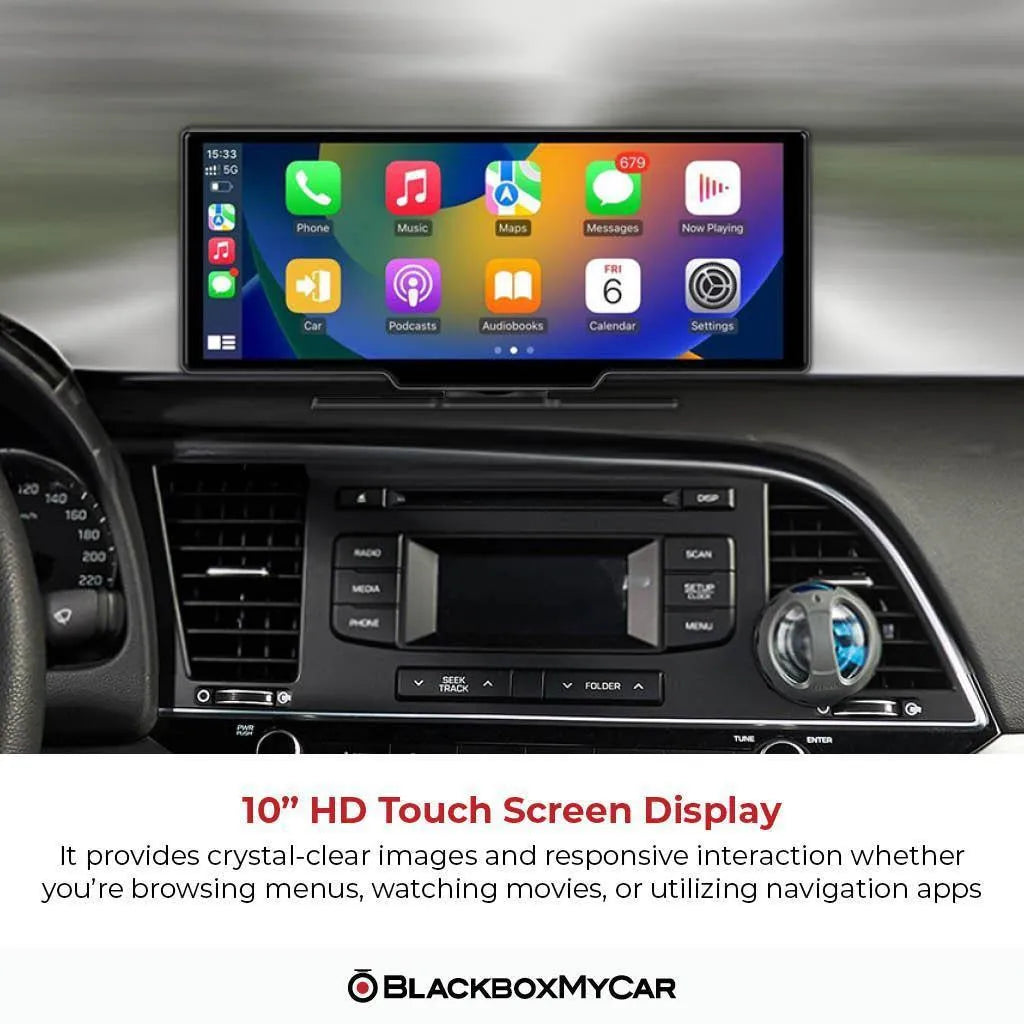

• 10-inch IPS touchscreen: a 1600 × 600 display with a single-point touch panel; use the on-screen plus and minus buttons to zoom maps.
• Front and rear Full HD recording: both cameras record 1920 × 1080 at 25FPS in H.264 MP4, with a 3-axis G-sensor for collision events.
• Reversing camera with guidelines: the rear view appears automatically when the trigger wire is connected, with adjustable on-screen guidelines.
• Flexible audio: play sound through the built-in speaker, AUX or the FM transmitter to suit your car's stereo.
• Voice controls: switch camera views or turn the display on and off with supported commands.

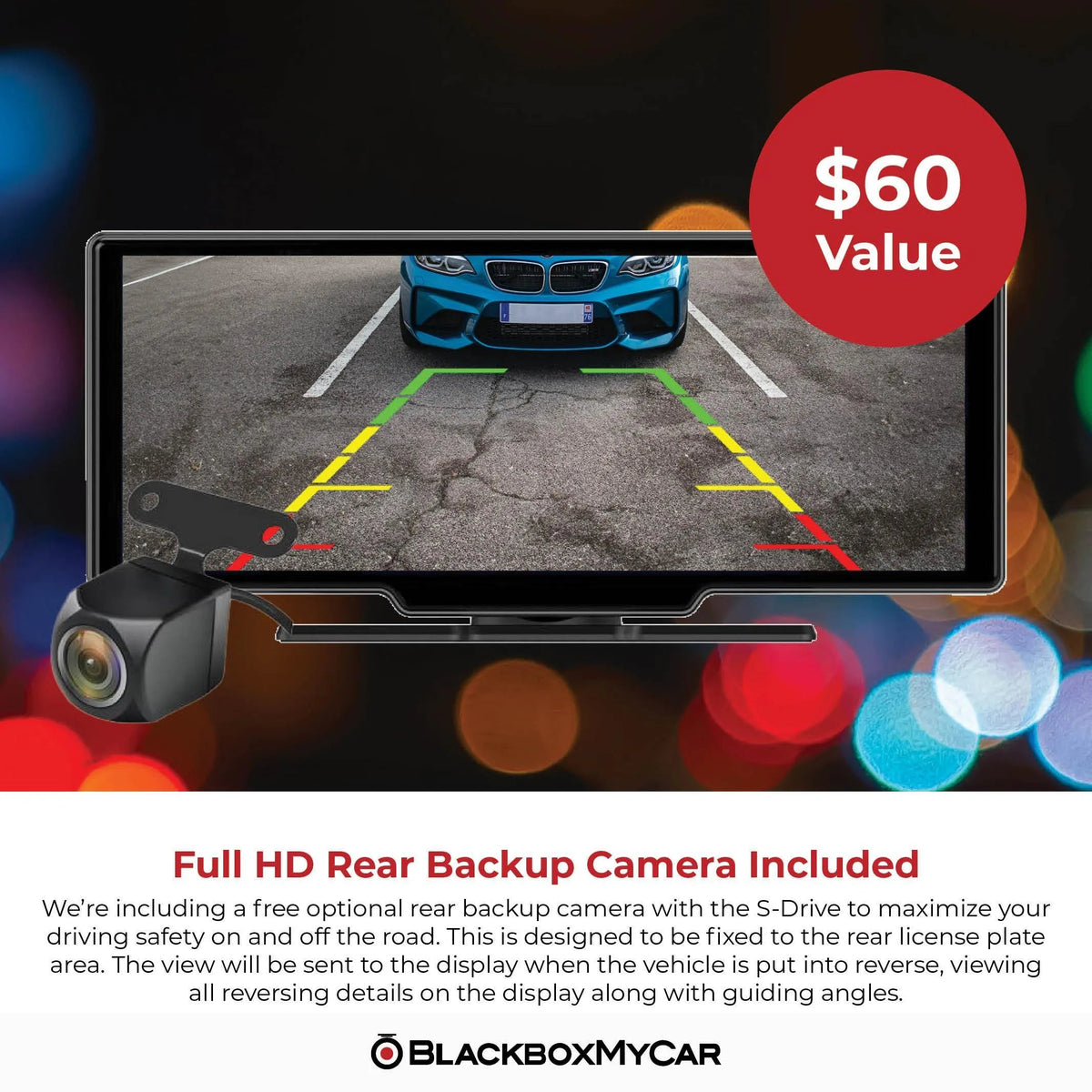

Rear camera and reversing view

The rear camera connects by cable and is designed to mount near the license plate. For an automatic reverse view, connect its trigger wire to the reversing-light circuit; otherwise you can select the rear view manually or by voice. Mounting it inside the rear window gives a higher angle that suits recording better than close-range reversing. The display and front camera work without the rear camera installed.

Recording and storage

Recordings save to a microSD card from 32GB to 256GB (Class 10 / U1); a 64GB card is included. Power the unit off before removing the card, then copy files with a card reader, or download clips through the Viidure app in Wi-Fi Video mode. Playback is also available on the display. The S-Drive does not offer parked-vehicle monitoring.

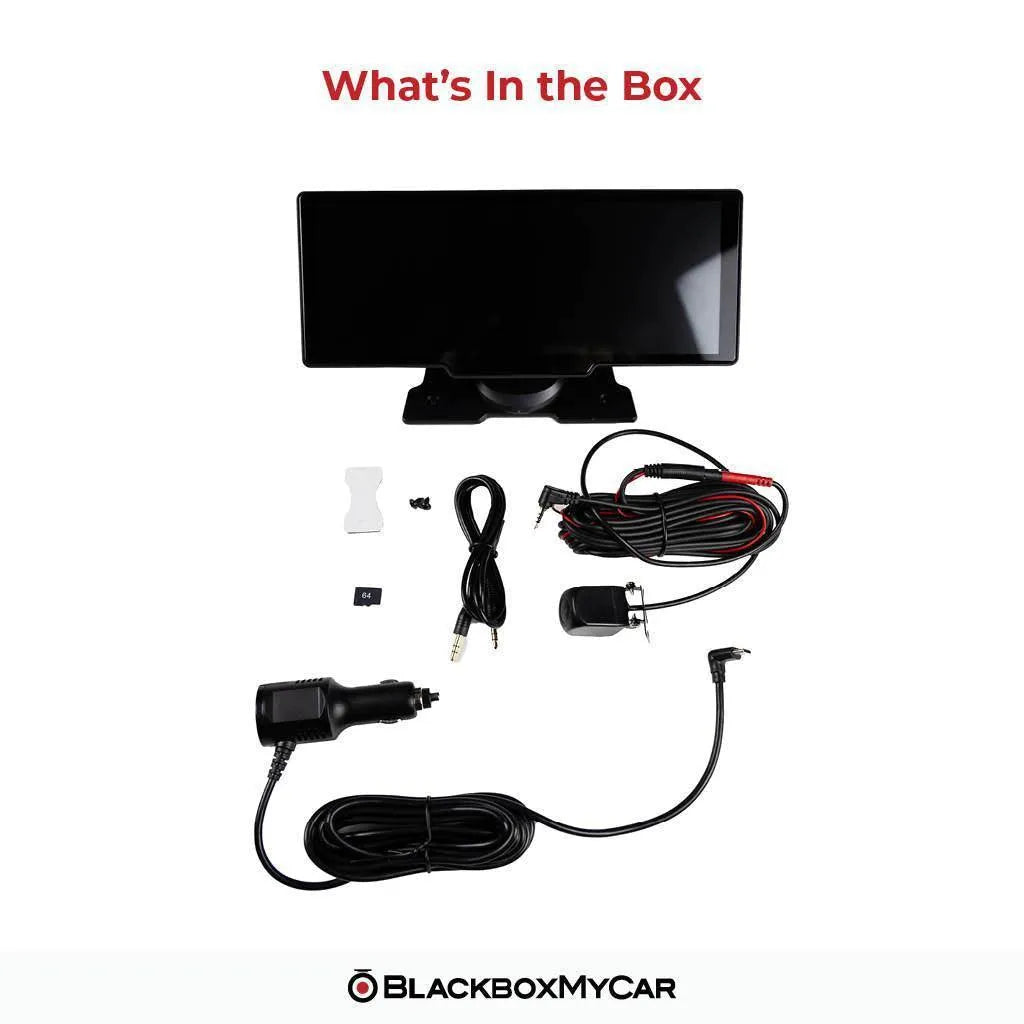

What's included

• S-Drive 10-inch display with built-in front camera × 1
• USB-C cigarette-lighter power cable × 1
• Rear camera with cable and mount × 1
• Rear connecting / extension cable, 6m (about 20ft) × 1
• Monitor base × 1
• AUX cable × 1
• 64GB microSD card × 1
• Product manual (via QR code)

Specifications

• Display: 10-inch IPS, 1600 × 600; single-point touch
• Phone interfaces: wireless Apple CarPlay and wireless Android Auto; one phone at a time
• Front camera: 1920 × 1080 at 25FPS
• Rear camera: 1920 × 1080 at 25FPS
• Recording: H.264 MP4; 3-axis G-sensor with adjustable sensitivity
• Connectivity: 2.4GHz and 5GHz Wi-Fi; Bluetooth for phone pairing
• Audio: built-in speaker, AUX and FM transmitter; built-in microphone
• Storage: microSD 32GB to 256GB (64GB included)
• Power: 12V cigarette-lighter adapter to USB-C input
• Parking mode: not supported
• Display size: about 9.4 × 4 × 1.7 inches (24 × 10.1 × 4.2cm), including camera lens
• Operating temperature: −4°F to 158°F (−20°C to 70°C)
• Warranty: 1-year manufacturer warranty

Setup notes

Mount the display where it leaves your view of the road and the vehicle controls clear, and route power and camera cables away from airbags and moving parts. To use voice control, enable both voice control and the microphone in settings. Disconnect one phone before pairing another.

Check Settings → Firmware → Configuration to see whether your unit is an M35 or M61, and use only the matching firmware. Back up recordings before updating.
